axl Orbit GPS Module for Drone, Robotics & Automobiles
The axl Orbit is a high-precision GPS module from axldrone for drone navigation, robotics, boats, and automobiles, engineered for accurate positioning, fast signal acquisition, and reliable performance in real-world conditions. Built with advanced multi-GNSS support, it delivers consistent and precise location data across dynamic and challenging environments.

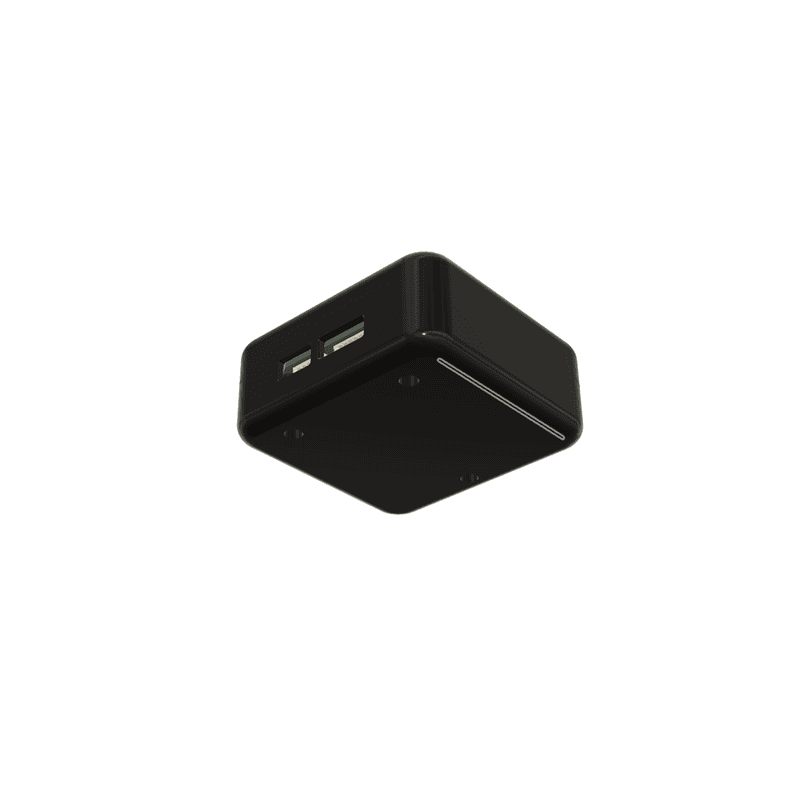

Engineered with an intelligently designed protective enclosure, axl Orbit offers enhanced durability, superior environmental protection, and a clean professional finish while simplifying installation.
Key Features & Specifications
- Maximum 32 Satellite Connectivity for reliable and accurate positioning.
- Features advanced Anti-Spoofing & Jamming solution for secure operation.
- Supports GPS, GLONASS, Galileo, and BeiDou GNSS systems.
- Compatible with GPS L1 C/A, GLONASS L1OF, BeiDou B1C, and Galileo E1B/C satellite bands.
- Offers a fast update rate up to 5Hz for smooth navigation and tracking.
- Delivers high accuracy with 1.5 m horizontal and 0.3° heading precision.
- Operates at altitudes up to 80,000 meters and speeds up to 500 m/s.
- Provides a quick cold start time of 23 seconds for faster signal lock.
- Designed to withstand extreme temperatures from -40°C to 85°C.
- Protective enclosure shields the module from humidity, dust, shock, spills and short circuit while simplifying assembly and enhancing finish.
For Navic support, please contact us!
Physical Form Factor
Shape: Rectangle
Dimensions (L × W × H): 52mm x 49mm x 17.15mm
Weight (with enclosure): ~ 26 g
Designed For:
Boats
Drones & Surveillance systems
Automobiles
