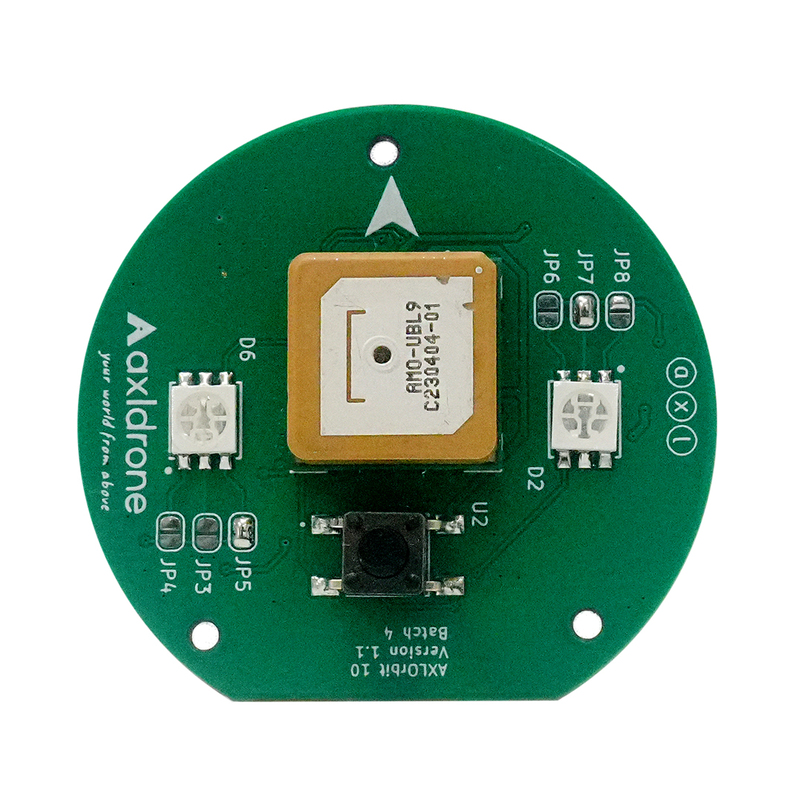

The axl Orbit-N (Non-Enclosure) is a high-precision GNSS receiver designed for integration into drone systems, robotics, and other autonomous platforms. It supports multiple GNSS constellations, including GPS, GLONASS, Galileo, and BeiDou, ensuring robust positioning capabilities in various environments. For Navic support, please contact us!
Key Features & Specifications
Maximum 32 Satellite Connectivity for reliable and accurate positioning.
Features advanced Anti-Spoofing & Jamming solution for secure operation.
Supports GPS, GLONASS, Galileo, and BeiDou GNSS systems.
Compatible with GPS L1 C/A, GLONASS L1OF, BeiDou B1C, and Galileo E1B/C satellite bands.
Offers a fast update rate up to 5Hz for smooth navigation and tracking.
Delivers high accuracy with 1.5 m horizontal and 0.3° heading precision.
Operates at altitudes up to 80,000 meters and speeds up to 500 m/s.
Provides a quick cold start time of 23 seconds for faster signal lock.
Designed to withstand extreme temperatures from -40°C to 85°C.
Physical Form Factor
Shape: Circular
Diameter: 47.2 mm
Height (including switch): 15.45 mm
Mounting: 3x M2 mounting holes
Weight: Approximately 13 grams
Designed For:
Boats
Drones & Surveillance systems
Automobiles
Package Includes:
1x axlOrbit-NGPSModule
1x 16.5cm ConnectionWire
