Components PDB 150
PDB 150

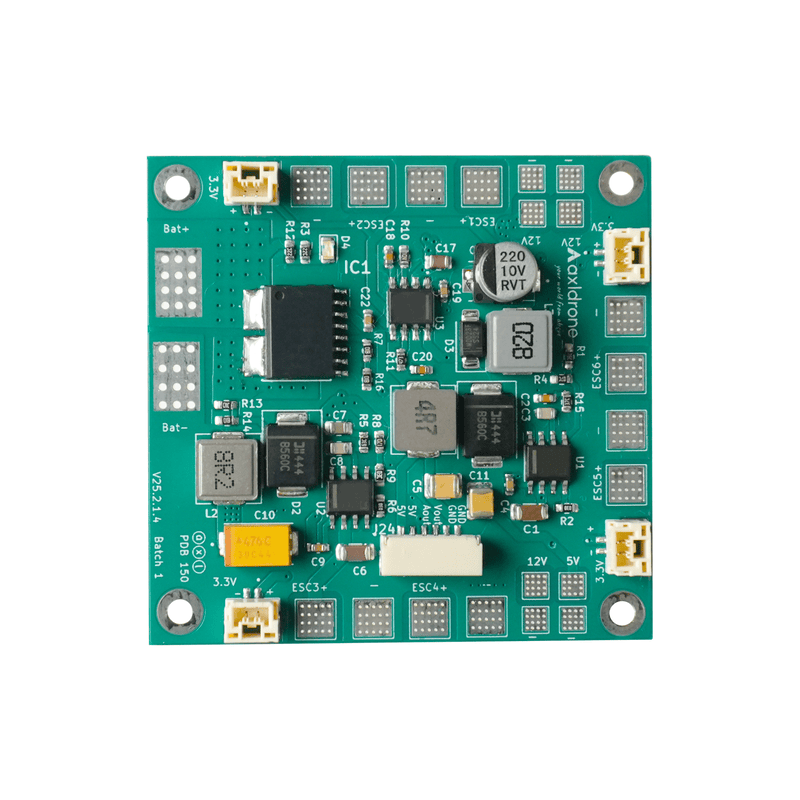

Power Distribution Board 150
- 80A continuous current with sensor
- Compatible with quadcopters and hexacopters
- Built-in hall-effect sensor for accurate telemetry
- Supports input voltage up to 30V (6S)
- Distributes power to up to 6 ESCs via solder pads
- Regulated outputs: 5V/4A, 12V/4A, 3.3V/1.5A
- 100% Designed and made in India
₹8,000.00
Available Offer
Share :
Product Details
The axldrone PDB 150 makes powering your builds simple and reliable with a current handling capacity of 80A. Whether you’re building a quadcopter, hexacopter, rover, or electric vehicle, this compact board ensures every component gets stable, clean power. It supports up to 6S batteries and can connect up to 6 ESCs or devices without clutter or overheating. With built-in voltage and current sensors, you always know your system’s status for safe and efficient performance. Designed for tight builds and long-term use, it’s made from high-quality FR4 material for extra strength and durability. Proudly made in India, the PDB 150 combines smart design, dependable performance, and easy installation for creators and engineers.
Key Features & Specifications
Handles continuous current loads up to 80 A with stable performance.
Compatible with quadcopter, hexacopter configurations.
Supports wide input voltage up to 30 V (6S) for flexible battery configurations.
Distributes power efficiently to up to 6 ESCs through dedicated solder pads.
Provides regulated outputs of 5 V @ 4 A, 12 V @ 4 A, and 3.3 V @ 1.5 A for onboard electronics.
Built-in hall-effect current sensor delivers accurate current and voltage telemetry.
Constructed on high-density FR4 PCB for superior durability and heat resistance.
Lightweight and compact layout optimized for drone integration.
Designed for easy soldering with clearly labeled and well-spaced connection pads.
Efficient copper trace design for improved thermal management and reliability.
Designed and manufactured entirely in India with rigorous quality control.
Mechanical Size: 56 mm × 54 mm × 7.5 mm
Mounting Hole: M3 (four mounting holes)
Weight: 18 g
PCB Material: High-density FR4
Input Voltage Range: Up to 30 V (supports up to 6S LiPo)
Maximum Current Handling: Up to 80 A
Number of Output Channels: Supports up to 6 ESCs (six +/− power pads)
Integrated Voltage Regulators (DC-DC / BECs): 5 V / 4 A, 12 V / 4 A, 3.3 V / 1.5 A
Power Connector: JST 6-pin power connector (5V, 5V, CURRENT, VOLTAGE, GND, GND)
Sensors: Integrated Hall-effect current sensor and voltage sensing for monitoring/telemetry
Country of Manufacture: 100% Made in India
Designed For:
Quadcopters
Hexacopters
Rovers
Electric cycles
Electric skateboards
Package Includes:
1 × Power Distribution Board 150
1 × 220 µF/50 V capacitor
Downloadable Resources:
