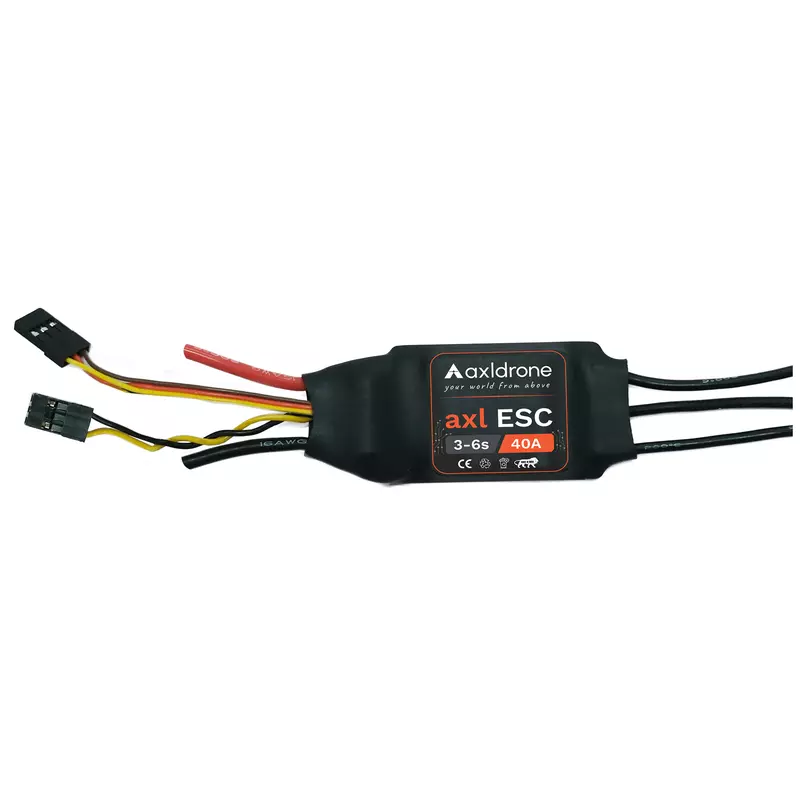

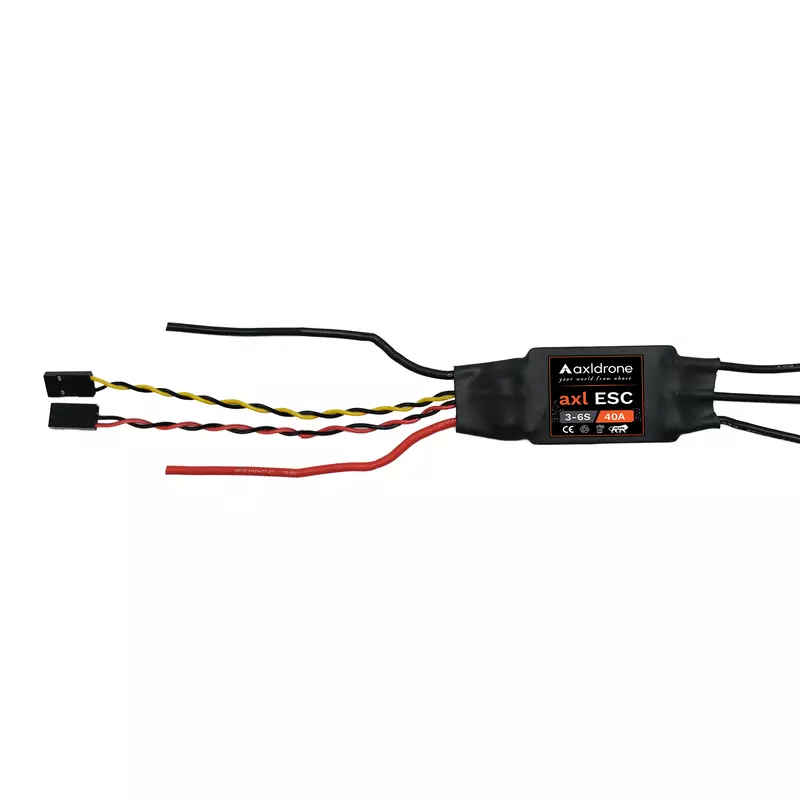

axl ESC 40A (3–6S) – Brushless ESC for Drone & UAV Applications
The axl ESC 40A is a compact, high-current brushless electronic speed controller (ESC) for drone and UAV applications, including multirotor and fixed-wing platforms. Built around a shunt-based current sensing architecture and a MOSFET/gate driver stage, this 40A ESC provides precise, low-latency motor control with real-time telemetry feedback.
The ESC runs custom firmware with support for digital and analog throttle protocols and can be configured through a standard ESC configurator tool.
Key Specifications
- Better tuned ESC for Fast & Responsive Motor Control
- 40A continuous current rating for reliable motor power delivery.
- Shunt-Based Current Sensing enables accurate, real-time current measurement.
- Dedicated Telemetry Output provides live voltage, current, RPM, and temperature data
- Custom firmware with configurable timing, braking, and protection parameters
- Compatible with 3–6S LiPo Systems to support a wide range of UAV configurations.
- Integrated Safety Protection safeguards the ESC against overcurrent, overtemperature, etc
- Dimensions: Approx. 7 mm x 2.9 mm
- Weight: ~28g
Designed For
Multi-Rotor Drones
RC Ground Vehicles
Robotics & Automation
Industrial Prototyping & Mechatronics
Package Includes
