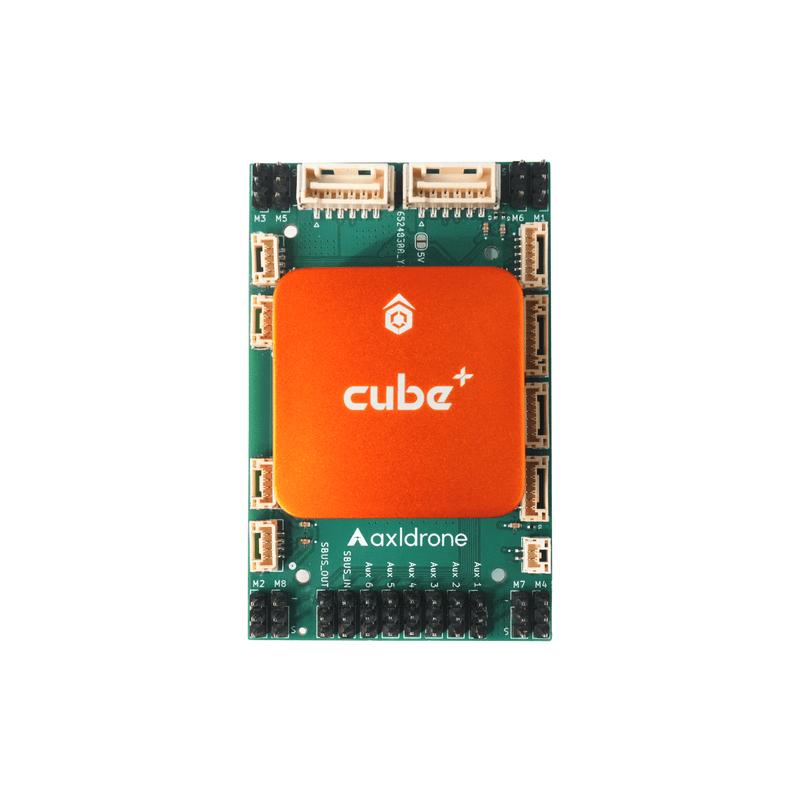

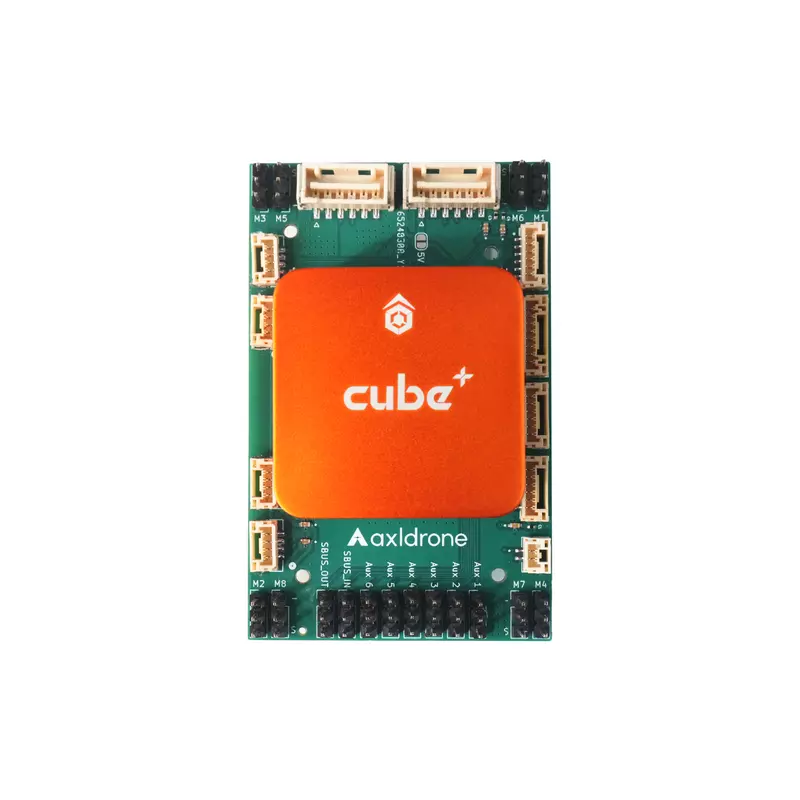

axl Carrier Board with Cube Orange
- Carrier Board with Cube Orange+
- Multiple connectivity: GPS, CAN, I²C, Serial, USB, SBC
- Suitable for multirotors, fixed-wing, VTOLs, and rovers
Available Offer
Share :
Key Features & Specifications
Dual redundant power inputs for reliable and uninterrupted operation
Multiple connectivity options including GPS, CAN, I²C, Serial, USB, and SBC connectors
Servo outputs for flexible control and simplified setup
Seamless integration with the Cube ecosystem for easy installation and compatibility
Compact, lightweight, and robust design optimized for multirotor, fixed-wing, VTOL, and rover applications
Dimensions (L × W × H): 80 mm × 50 mm × 24 mm
Weight: 54 g
Power Input: 5 V
Power Ports: 2 × Power inputs
PWM Outputs: 8 × Motor outputs (M1–M8)
AUX / Servo Outputs: 6 × Servo outputs (shared AUX rail, external power capable)
RC Input: SBus In / Out (2.54 mm standard RC input/output)
UART / Serial Ports: 2 × UART (SERIAL1, SERIAL2)
I2C Ports: 1 × I2C
CAN Bus: 1 × CAN1
GPS Ports: 2 × GPS (GPS1, GPS2)
Companion Computer Interface: 1 × SBC Port
USB: 1 (For firmware flashing & configuration)
Buzzer Port: 1
Operating Temperature: –10 °C to +80 °C
Designed For
Multirotor drones
Fixed-wing aircraft
VTOL systems
Rovers & ground vehicles
Package Includes
1× axl Carrier Board
1x Cube Orange+
