Components axl OneView
axl OneView
Professional Radio Controller
- 10 km Remote Control Range
- 7-inch HD LCD Touchscreen
- Swappable Battery Pack with Up to 2.5 Hours Backup
- Proprietary axlDOS Operating System
- Dual 2.4GHz Antenna System
- 1W RF Output Power (30dBm)
₹160,000.00 ₹180,000.00
Available Offer
Share :
Product Details

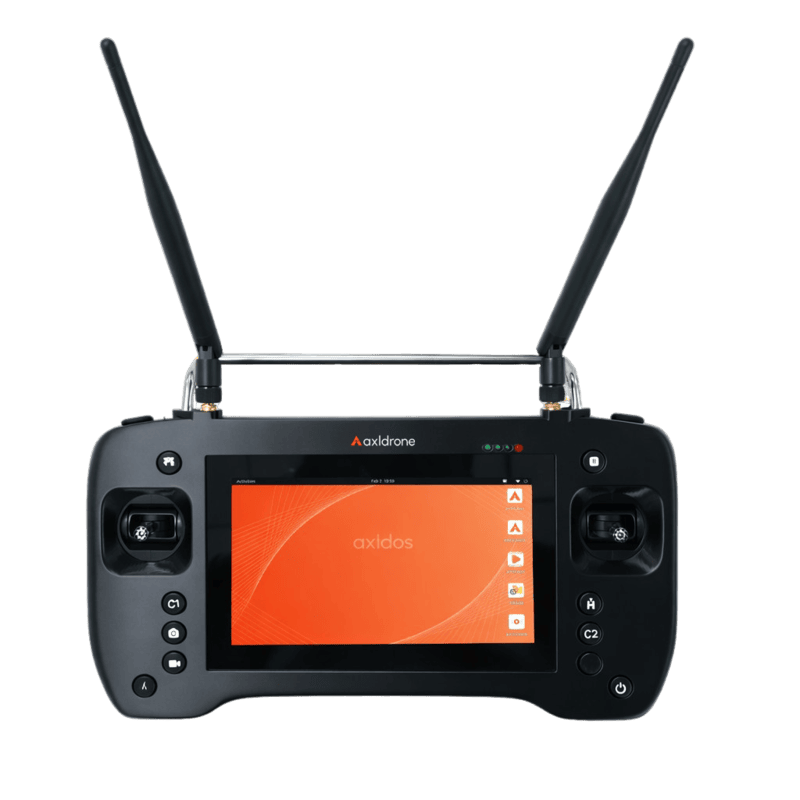

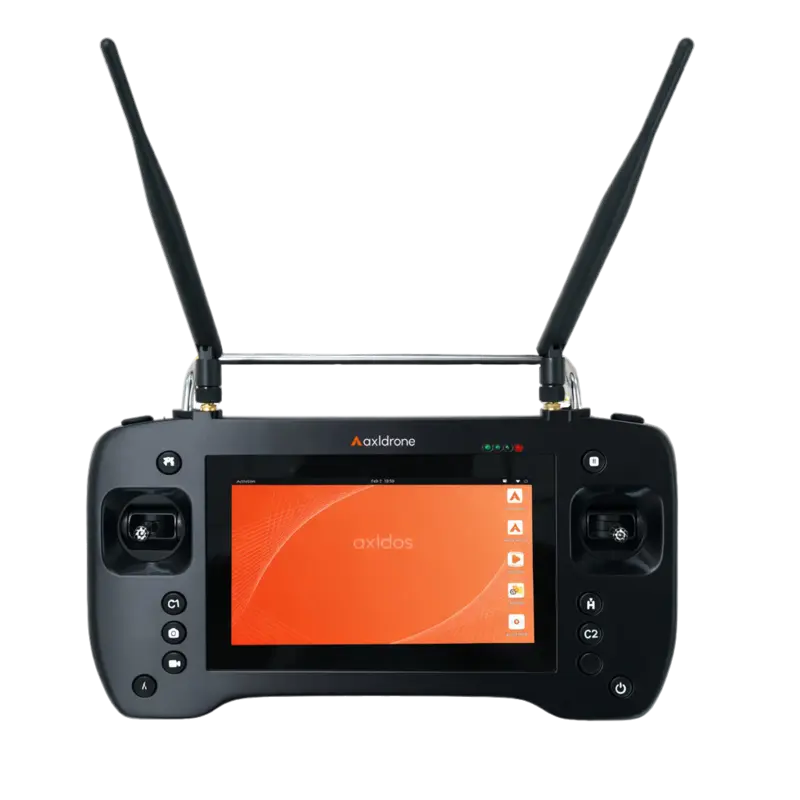

axl OneView Professional Drone Remote Controller
axl OneView is a professional Radio Controller built for drone, UAV, UGV, and industrial IoT applications that require stable long-range communication and reliable field performance. Used as a drone remote controller, it supports real-time mission operations for mapping, inspection, surveillance, mesh networking, and autonomous workflows.
Operating on 2.4GHz with dual antennas, the controller supports communication ranges up to 10 km in demanding outdoor environments. The 7-inch LCD touchscreen with 1024 × 600 resolution provides clear visibility for live monitoring, flight control, and operational management in the field.
axl OneView runs on our proprietary axlDOS secure operating system and features our in-house Ground Control Software for streamlined mission planning and UAV management. The system is designed to provide a responsive and user-friendly control experience across professional deployments.
Built for flexible integration, the controller includes USB, LAN, WLAN, and audio connectivity options for compatibility with different drone platforms, payloads, and connected systems. Its compact handheld design and 3000mAh battery make it suitable for extended industrial operations, while functioning as a reliable drone transmitter and receiver solution for field applications.
Key Features & Specifications
- Long-Range Transmission: Up to 10 km remote control range with stable real-time communication
- Mesh Networking Support: Enables multi-drone connectivity, video streaming, and extended operational coverage
- 7-inch HD Touchscreen Display: 1024 × 600 LCD for clear real-time monitoring and control
- Secure Communication System: Encrypted data transmission for safe and reliable operations
- Proprietary Platform: Runs on axlDOS operating system with integrated axlGC Ground Control Software
- Mission Data Logging: Built-in system for flight data recording, storage, and download
Connectivity & Control
Wireless: WiFi, Bluetooth
External Interfaces: USB, HDMI, LAN, AUX Out
Air Unit Control Output: SBUS, UART, LAN
Channels: 16-channel control system
RF & Communication
Working Frequency: 2.4GHz dual antenna system
RF Power: 1W (30dBm)
Signal Bandwidth: 4MHz
Storage & Performance
Storage: 64GB internal memory
Processor: Intel N Series
Operating System: axlDOS secure OS
Power & Battery
Battery Capacity: 3000mAh
Battery Life: Up to 2.5 hours (swappable battery pack system)
Power Input: 12V recommended supply
Power Consumption: ≤ 3W average
Display & Build
Screen: 7-inch LCD touchscreen (1024 × 600)
Build Material: ABS industrial-grade casing
Dimensions: 300 × 192 × 68.2 mm
Weight: Approx. 1120g (with battery & antenna)
Environmental
Operating Temperature: -10°C to 55°C
Designed For
UAV
UGV
Industrial IoT
Package Includes
1 × axl OneView Radio Controller
1 × Air Unit
1 × Type-C Charger
2 × Stick antenna
