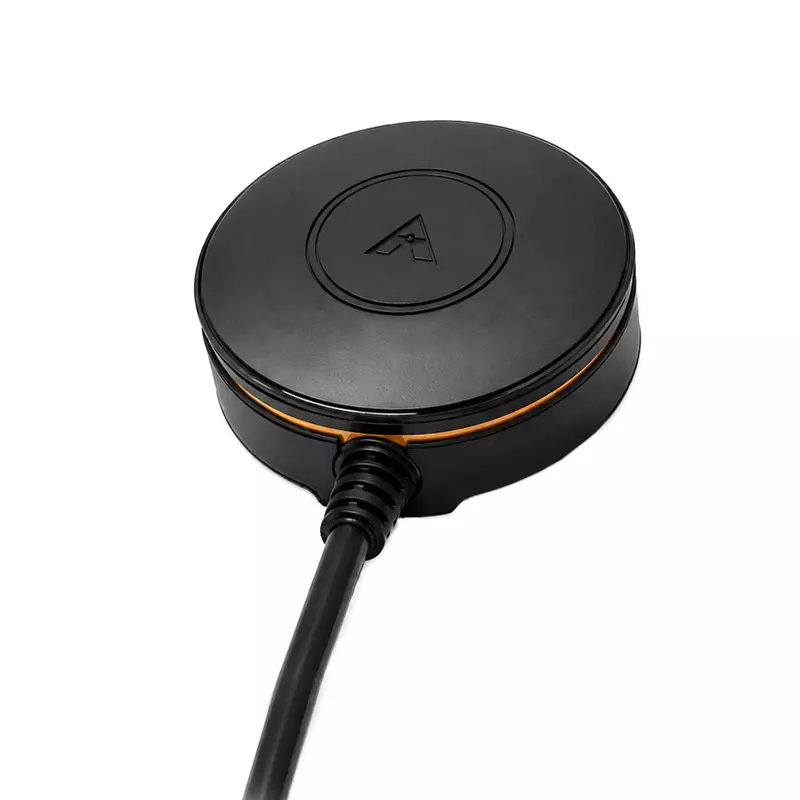

axl Orbit NavIC
DroneCAN GNSS module
- Compact, high-precision DroneCAN GNSS module
- u-blox NEO-F10N dual-band L1 + L5 GNSS receiver
- NavIC, GPS, QZSS, Galileo, and SBAS Support
- Positioning Accuracy up to 1 meter
- Bosch BMM350 3-axis magnetometer
- Internal Buzzer and Safety switch
₹14,200.00
Available Offer
Share :
Product Details
axl Orbit NavIC - High-precision DroneCAN GNSS module
axl Orbit NavIC is a compact and high-precision DroneCAN GNSS module designed for UAVs and autonomous systems. Featuring the u-blox NEO-F10N with simultaneous dual-band L1 L5 reception, the module supports multiple satellite constellations, including NavIC, GPS, QZSS, Galileo, and SBAS, for reliable positioning, faster satellite lock, and improved navigation accuracy.
Integrated with the Bosch BMM350 3-axis magnetometer, axl Orbit NavIC delivers accurate heading and positioning performance with positioning accuracy of up to 1 meters, making it suitable for industrial, agricultural, mapping, and autonomous drone applications.
The module is compatible with ArduPilot, PX4, and axldrone flight control ecosystems (all FCs that provide UART for GNSS and I2C for Compass), enabling easy integration across a wide range of UAV platforms.
Key Features & Specifications
Dual-Band L1 L5 GNSS Reception
Multi-Constellation Support: NavIC, GPS, QZSS, Galileo, and SBAS
Positioning Accuracy up to 1 meter
High Navigation Update Rate up to 20 Hz
Integrated Bosch BMM350 3-Axis Magnetometer for Accurate Heading
DroneCAN Communication for Reliable UAV Integration
Compatible with ArduPilot, PX4, and axldrone Flight Control Ecosystems
RF Interference and Jamming Detection & Reporting Support
Spoofing Detection and Reporting Support
Compact Design for Easy UAV Integration
Faster Satellite Lock and Reliable Positioning
Safety switch, internal buzzer, fix indicator LEDs, and backup battery
GNSS Receiver: u-blox NEO-F10N
Frequency Bands: Dual-Band L1 L5
GNSS Constellations: GPS, QZSS, Galileo, NavIC, SBAS
Positioning Accuracy: 1.0 m CEP
Navigation Update Rate: Up to 20 Hz
Maximum Satellites: 32
Magnetometer: Bosch BMM350 3-Axis
Communication: UART (GNSS), I2C (Compass)
Working Voltage: 4.75–5.25 V
Antenna: Dual-Stack L1/L5 Ceramic Antenna
Operating Temperature: −40°C to 85°C
Compatibility: Flight Controllers with UART for GNSS & I2C for Compass
Physical Form Factor
Shape: Circular
Dimension: Ø57 × 23.7 mm
