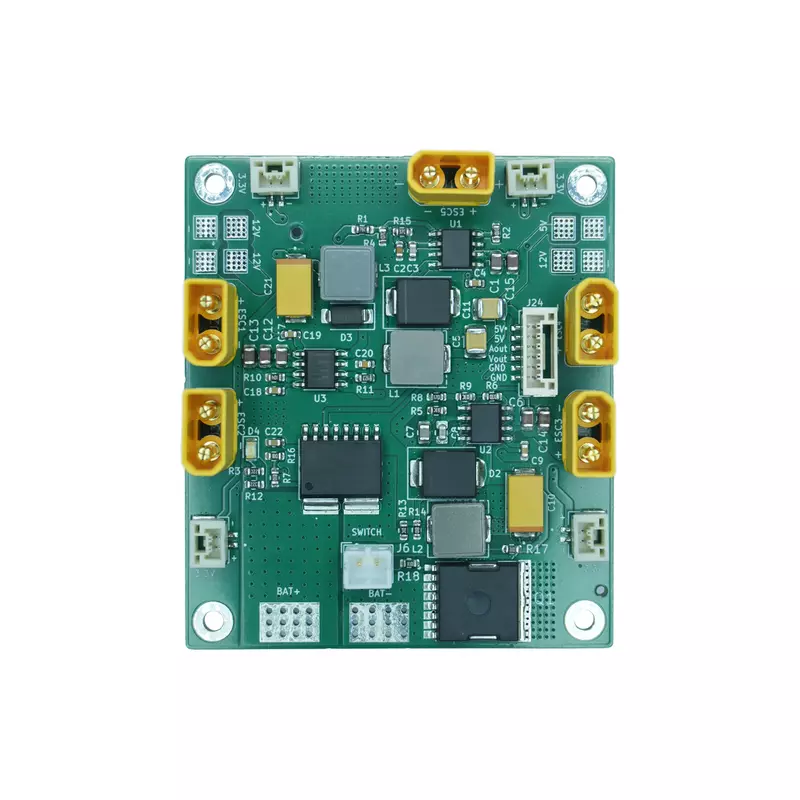

The axldrone PDB 80A is a compact and reliable power distribution board designed for efficient power delivery across drones, robotics, and electric mobility systems. With up to 80A current handling and 6S battery support, it delivers stable, clean power to multiple components without clutter.

Commonly used as a drone power distribution board, it is also ideal for ground-based applications like rovers and electric vehicles, making it a versatile choice for modern builds. The board supports up to 4 ESCs or devices, ensuring organized and efficient power routing in multi-component systems.

Built-in voltage and current sensors provide real-time system monitoring, helping improve safety and performance. Its compact design and durable FR4 construction make it perfect for tight integrations and long-term use.

Handles continuous current loads up to 80 A with stable performance.

Compatible with quadcopters.

Supports wide input voltage up to 30 V (6S) for flexible battery configurations.

Distributes power efficiently to up to 4 ESCs through XT30 Connectors.

Soft power switching enables controlled startup.

Provides regulated outputs of 5 V @ 4 A, 12 V @ 4 A, and 3.3 V @ 1.5 A for onboard electronics.

Built-in hall-effect current sensor delivers accurate current and voltage telemetry.

Constructed on high-density FR4 PCB for superior durability and heat resistance.

Lightweight and compact layout optimized for drone integration.

Designed for easy soldering with clearly labeled and well-spaced output pads.

Efficient copper trace design for improved thermal management and reliability.

Designed and manufactured entirely in India with rigorous quality control.

Mechanical Size (L*W*H): 62 mm x 54 mm x 11 mm

Mounting Hole: M2.5 (four mounting holes)

Weight: 25 g

PCB Material: High-density FR4

Input Voltage Range: Up to 30 V (supports up to 6S LiPo)

Maximum Current Handling: Up to 80 A

Number of Output Channels: Supports up to 4 ESCs (four XT30 Connectors)

Integrated Voltage Regulators (DC-DC / BECs): 5 V / 4 A, 12 V / 4 A, 3.3 V / 1.5 A

Power Connector: JST 6-pin power connector (5V, 5V, CURRENT, VOLTAGE, GND, GND)

Sensors: Integrated Hall-effect current sensor and voltage sensing for monitoring/telemetry

Country of Manufacture: India

Quadcopters

Rovers

Electric cycles

Electric skateboards
